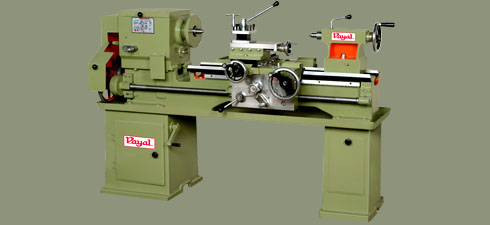

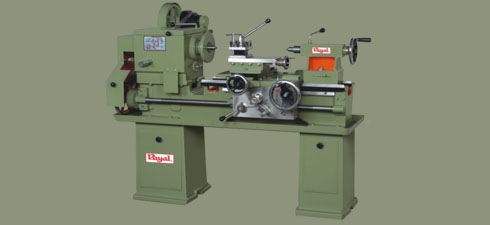

Under Counter Meduim Lathe Machine |
Technical Specification - Double V-Belt |
Length of Bed |
4'6" |
6' |
Height of Center |
200mm (8") |
200mm (8") |
Between Center |
575mm (23") |
1025mm (41") |
Width of Bed |
275mm (11") |
275mm (11") |
Spindle Bore |
52mm (2.1/8") |
52mm (2.1/8") |
Width of Surface |
175mm (7") |
175mm (7") |
Lead Screw |
4 TPI |
4 TPI |
Inch Thread |
4 to 24 |
4 to 24 |
Metric Thread |
1 to 6 mm |
1 to 6 mm |
Power Required |
1.5 HP |
1.5 HP |
|
